Towers of Hanoi puzzle¶

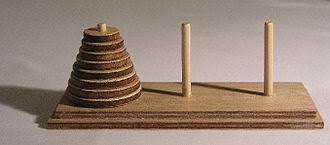

A classic puzzle: given a board with three pegs, move a stack of disks of different size from the left-most peg to the right-most peg, moving one disk at a time and following the rule that no larger disk can be placed on top of a smaller one.
A surprisingly powerful technique in scientific programming — and the structure of every dynamic programming solver we write later in the course.
The Hanoi puzzle can be solved nicely by breaking it into small parts using the following algorithm:
def move(from,to):
move one disk from --> to
def main_algorithm(n,source,aux,target):
'''
Inputs: number of disks n
source peg
auxiliary peg
target peg
'''
if n==0:
do nothing, return
if n==1:
move(source,target)
if n>0:
main_algorithm(n-1,source,target,aux)
move(source,target)
main_algorithm(n-1,aux,source,target)Solution
The whole puzzle collapses into three lines: to move disks, first move the top out of the way onto the auxiliary peg, move the bottom disk across, then move those back on top of it. Each of those two sub-problems is the same problem with one disk fewer, so the function calls itself.
def hanoi(n, source='A', aux='B', target='C', verbose=True):
'''Move n disks from source peg to target peg, using aux as intermediary.
Returns the number of moves made.
'''
if n <= 0:
return 0 # nothing left to move
moves = hanoi(n-1, source, target, aux, verbose) # free the bottom disk
if verbose:
print(f'{source} --> {target}') # move it across
moves += hanoi(n-1, aux, source, target, verbose) # rebuild on top of it
return moves + 1
print(f'{hanoi(3)} moves for 3 disks')A --> C
A --> B
C --> B
A --> C
B --> A
B --> C
A --> C
7 moves for 3 disks
Note that the recursive calls swap the roles of the pegs: the auxiliary peg of one
call is the target of the next. Only the base case n <= 0 stops the recursion.
The solution for disks requires moves, so 15 for the four disks below — the illustration stops at configuration 13, two moves short of the goal.
Source
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
from matplotlib.patches import Rectangle
from IPython.display import HTML
def initial_position(n, source='A', target='C', auxiliary='B'):
"""Return the initial contents of the three pegs."""
if not isinstance(n, int) or isinstance(n, bool) or n < 1:
raise ValueError('n must be a positive integer')
if len({source, target, auxiliary}) != 3:
raise ValueError('the three peg names must be different')
return {
source: list(range(n, 0, -1)),
auxiliary: [],
target: [],
}
def hanoi_moves(n, source='A', target='C', auxiliary='B'):
"""Generate the moves in the same order as hanoi()."""
if n > 0:
yield from hanoi_moves(n - 1, source, auxiliary, target)
yield source, target
yield from hanoi_moves(n - 1, auxiliary, target, source)
def hanoi_states(n, source='A', target='C', auxiliary='B'):
"""Generate the initial position and every position after a move."""
pegs = initial_position(n, source, target, auxiliary)
yield 0, None, {name: disks.copy() for name, disks in pegs.items()}
for step, (old_peg, new_peg) in enumerate(
hanoi_moves(n, source, target, auxiliary), start=1
):
disk = pegs[old_peg].pop()
if pegs[new_peg] and pegs[new_peg][-1] < disk:
raise RuntimeError('illegal move: a larger disk cannot cover a smaller disk')
pegs[new_peg].append(disk)
position = {name: disks.copy() for name, disks in pegs.items()}
yield step, (disk, old_peg, new_peg), position
def draw_hanoi(position, title=None, ax=None):
"""Draw one position of the puzzle and return its axes."""
if ax is None:
_, ax = plt.subplots(figsize=(8, 4))
else:
ax.clear()
peg_names = list(position)
n = sum(len(disks) for disks in position.values())
disk_height = 0.65
base_y = 0.25
ax.plot([-0.55, 2.55], [base_y, base_y], color='0.25', linewidth=3)
for x, (name, disks) in enumerate(position.items()):
ax.plot(
[x, x], [base_y, base_y + disk_height * (n + 0.6)],
color='0.35', linewidth=3, zorder=0,
)
for level, disk in enumerate(disks):
width = 0.35 + 0.95 * disk / n
rectangle = Rectangle(
(x - width / 2, base_y + level * disk_height),
width, disk_height * 0.82,
facecolor=plt.cm.viridis(0.15 + 0.7 * disk / n),
edgecolor='0.15',
linewidth=1.2,
zorder=1,
)
ax.add_patch(rectangle)
ax.text(
x, base_y + (level + 0.41) * disk_height, str(disk),
ha='center', va='center', color='white', fontweight='bold',
zorder=2,
)
ax.set_xticks(range(3), peg_names)
ax.set_xlim(-0.7, 2.7)
ax.set_ylim(0, base_y + disk_height * (n + 1))
ax.set_yticks([])
ax.tick_params(axis='x', length=0, labelsize=12)
for spine in ax.spines.values():
spine.set_visible(False)
if title is not None:
ax.set_title(title)
return ax
def animate_hanoi(n, source='A', target='C', auxiliary='B', interval=700):
"""Return a notebook animation, beginning with the initial position."""
states = list(hanoi_states(n, source, target, auxiliary))
figure, ax = plt.subplots(figsize=(8, 4))
def update(frame):
step, move_data, position = states[frame]
if move_data is None:
title = 'Initial position'
else:
disk, old_peg, new_peg = move_data
title = f'Move {step} of {len(states) - 1}: disk {disk}, {old_peg} → {new_peg}'
draw_hanoi(position, title=title, ax=ax)
animation = FuncAnimation(
figure, update, frames=len(states), interval=interval, repeat=False
)
plt.close(figure)
return HTML(animation.to_jshtml())
animate_hanoi(8)
